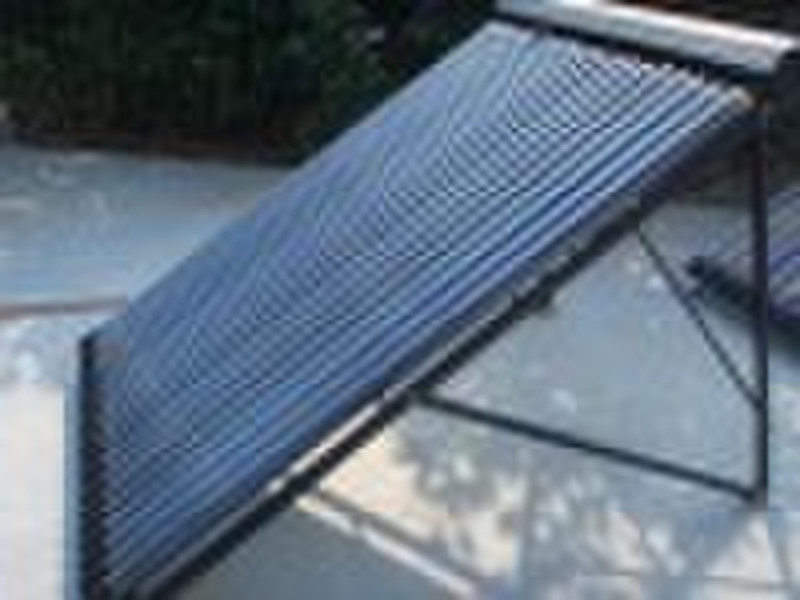

Solar collector

Specifiation TZ series Solar collectors areconnected with existing heating supply device, which is main part of solar water heating system. The selective coating on the inner cover of the evacuated tubes converts solar energy into heat energy and transfers heat to the heat pipes. The heat then passes through the heat exchanger. It is also a kind of heat collecting device which can be used separately. Solar collector specification Manifold: Aluminum Alloy Frame: Zinc Coated Steel/Stainless Steel Insulation: Rock Wool Tested pressure: 1.0MPa / 10 Bar Working pressure: 0.6MPa / 6 Bar Number of Tube: 10/15//22/24/30 Length of Tube: 1800mm Outer Tube Diameter: 58mm Inner Tube Diameter: 47mm Tube Thermal Expansion: 3.3 X 10 -6oC Tube Material: Borosilicate Glass 3.3 Absorptive Coating: AL-N/SS/Cu(MS), three target ones. Absorptions: >94% (AM 1.5) Emittance: <7% (100oC) Vacuum P: <5*10-3Pa Stagnation Temperature: > 220oC Heat Loss: <0.8 W/sqmoC
